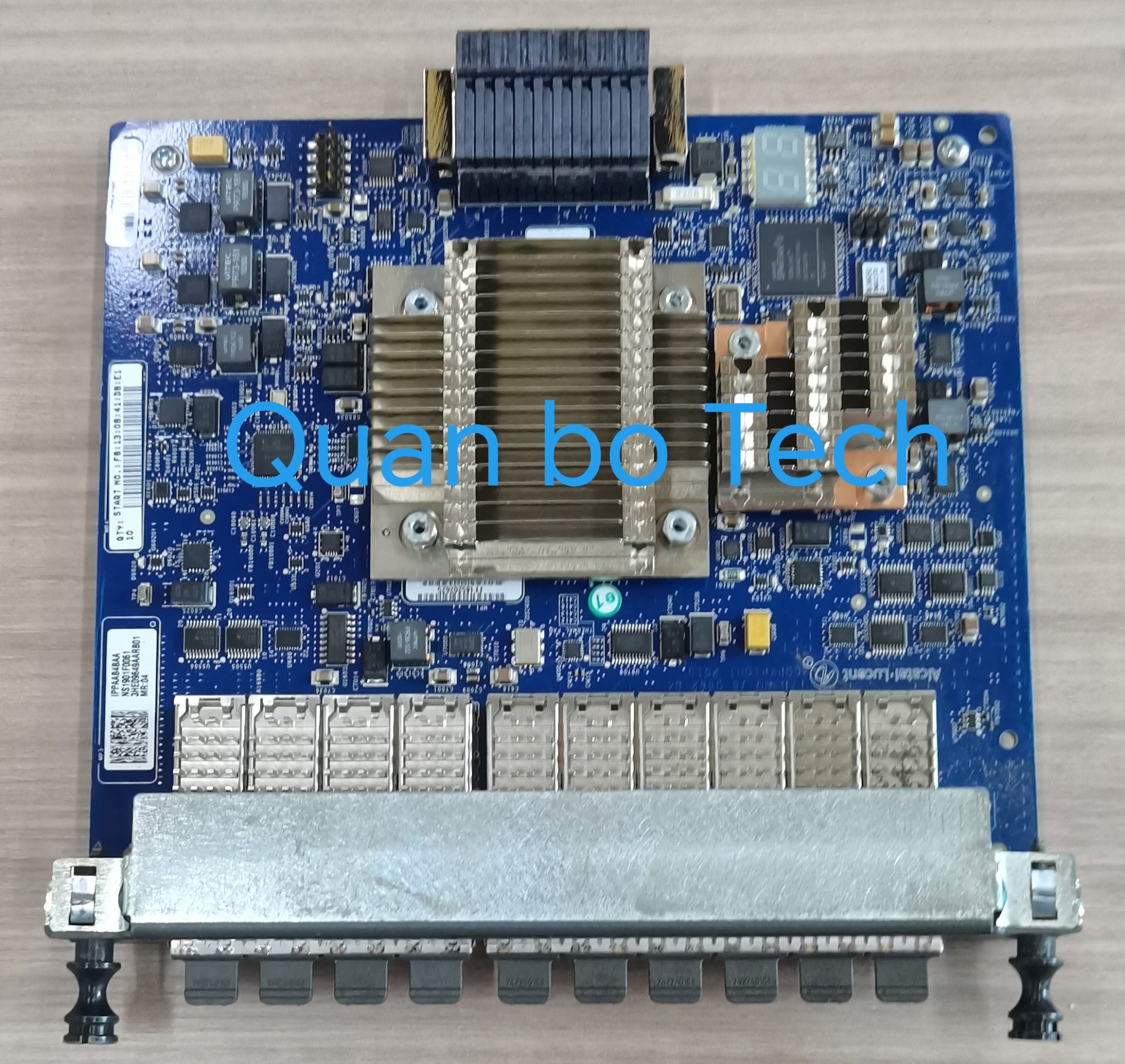

Nokia 3HE09649AA

Brand name: Nokia

Part Number:  3HE09649AAA

CLEI:  IPPAAB4BAA

Board series: 7750 SR-12

Board performance:  10-PORT 10GE SFP+ MDA-e

description:  7750 SR-12  10-PORT 10GE SFP+ MDA-e .

Availability: New

Lead time-5days

Trading terms: TT

Warranty period:  180days

Country of origin:  Mexico .

Nokia 3HE09649AA is a high-performance 10-port 10 Gigabit Ethernet (10GE) business board card

It is usually used in its high-end router and switch platforms (such as the 7750 SR series or the 7950 XRS series). The following is its product introduction and typical application scenarios:

I. Product Introduction

1. Basic specifications

Port configuration: 10 10GE (10Gbps) interfaces, typically using SFP+ optical module interfaces, supporting flexible fiber or copper cable connections.

Compatibility: Compatible with Nokia carrier-grade router/switch frames (such as 7750 SR-7/12, 7950 XRS, etc.), and supports hot plugging.

Forwarding capability: Based on Nokia's FP chip, it offers line-speed forwarding performance with low latency, making it suitable for high-throughput scenarios.

2. Hardware characteristics

High-density design: Integrate 10 10G ports in a single slot to optimize space utilization.

Flexible rate: Supports 1G/10G rate adaptation (depending on the type of SFP module), and some models may support 25G/40G (compatibility needs to be confirmed).

Reliability: Supports hardware-level redundancy, failover and hot plugging to ensure uninterrupted network operation.

3. Software Functions

Protocol support: IPv4/IPv6, MPLS, VPLS, QoS, ACL, SDN (such as Segment Routing), etc.

Traffic management: Advanced traffic scheduling, congestion control, priority marking (such as DiffServ).

Programmability: Supports automated operation and maintenance and API integration, and is compatible with cloud-based network architectures.

Ii. Typical Usage Scenarios

Operator network

Metropolitan area network aggregation: It is used at the edge or core layer of the operator's metropolitan area network, aggregating multiple 10G links to carry high-bandwidth services such as IPTV and 5G backhaul.

IP/MPLS core network: As a PE (Provider Edge) or P (Provider) node, it handles a large amount of label switching traffic.

2. Data Center Interconnection (DCI

Connect multiple data centers and support large-capacity virtual machine migration, storage replication, and distributed applications.

3. Enterprise Core network

The core layer of large enterprise or campus networks provides high-density 10G access and supports applications such as video conferencing and cloud computing.

4. Cloud service provider

The underlying connection for virtualized resource pools supports dynamic bandwidth allocation and network slicing under the SDN architecture.

5. High-reliability scenarios

Industries such as finance and healthcare, which have high requirements for network disaster recovery, rely on their redundant design and rapid fault recovery capabilities.

Iii. Summary of Advantages

High performance: Supports 10G line-speed forwarding and is suitable for heavy traffic loads.

Flexible expansion: Supports multiple types of optical fibers (such as LR, SR, ER) and transmission distances through SFP+ modules.

Carrier-grade reliability: Meets the 99.999% availability standard of the telecommunications grade.

In addition to Nokia 3HE09649AA ,  Quanbo Tech supply a wide range of other Nokia 7750-SR router series . If you have any need or interest, please feel free to send inquiry to Sale@quanbotelecom.com
