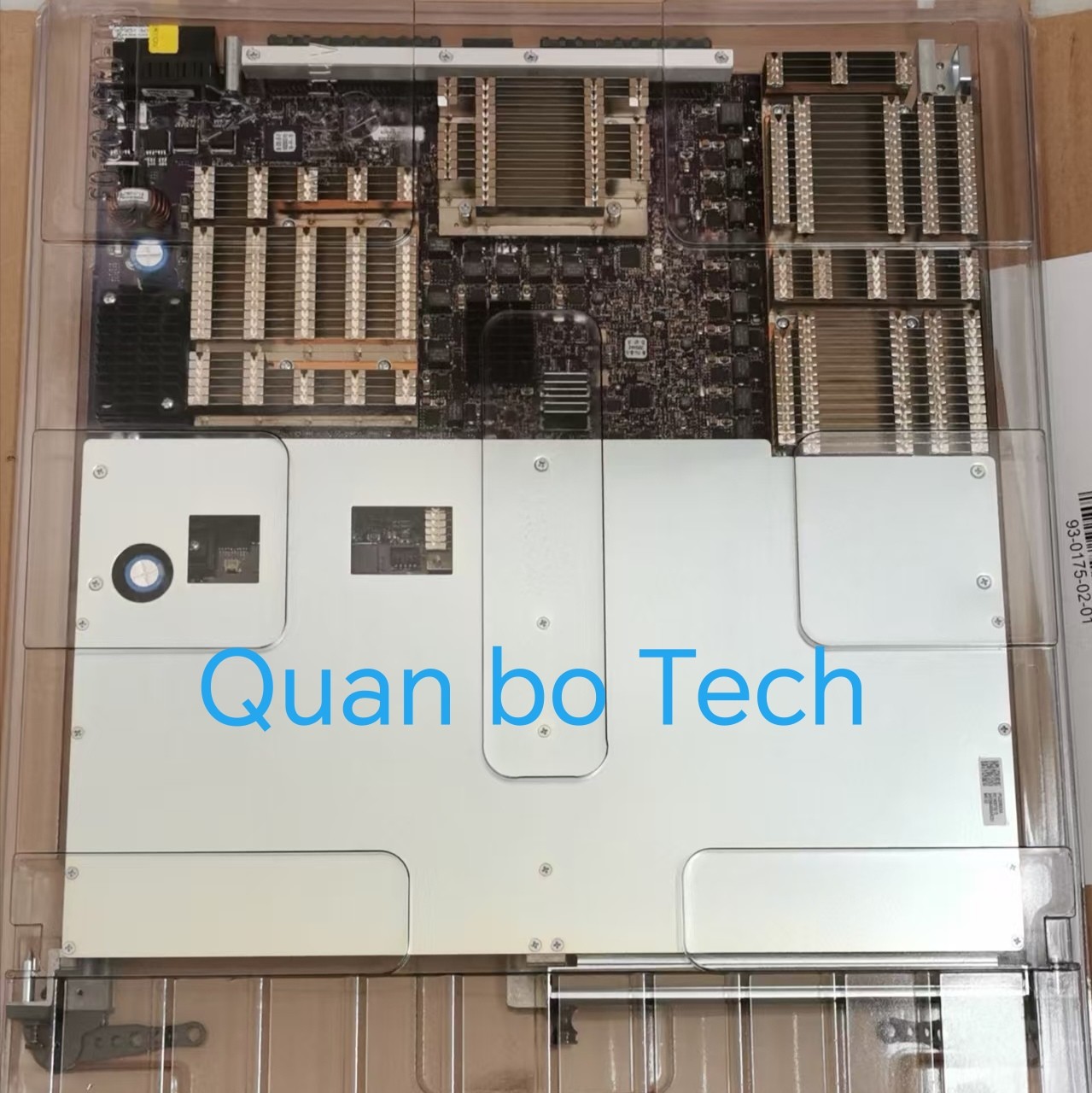

Nokia 3HE09648BA

Brand name: Nokia

Part Number:  3HE09648BA

CLEI:  IPU3BB6EAA

Board series: 7750 SR-12

Board performance:  200G motherboard IOM4-e LQ3B

description:  7750 SR-12  200G motherboard IOM4-e LQ3B .

Availability: New

Lead time-5days

Trading terms: TT

Warranty period:  180days

Country of origin:  Mexico .

Detailed introduction and application scenario analysis of Nokia 3HE09648BA 200G motherboard card (dedicated to the 7750 Service Router (SR) series) :

Product Overview Model: 3HE09648BA

The high-performance master board card of Nokia 7750 SR series routers is specially designed for high-density and high-throughput business scenarios.

Core functions:

Supports the insertion of 2 sub-cards (such as IMM (Interface Module)), flexibly expanding the port type and capacity.

A single slot provides a total bandwidth of 200G and supports high-speed service forwarding and aggregation.

Deeply integrated IP/MPLS functions, suitable for operators, enterprises and cloud service networks.

2. Hardware characteristics

Master board card capacity

Capacity: 200G full-duplex bandwidth, which can be allocated to sub-card ports (for example, 2×100G or 8×25G).

Sub-card compatibility:

Supports multiple IMM sub-card types (such as 10GbE, 25GbE, 100GbE ports).

Typical example of a sub-card:

10x10GbE: High-density low-speed interface convergence.

2x100GbE: high-speed uplink or core interconnection.

Hybrid sub-card: Supports port combinations of different rates (such as 4×25GbE + 1×100GbE).

Hot plugging: Supports online replacement of sub-cards and master cards to ensure business continuity.

Performance and Protocol

Forwarding capability: Hardware acceleration based on NPU (Network Processor), supporting line-speed forwarding.

Protocol support:

Routing protocols: BGP, OSPF, IS-IS, MPLS (LDP/RSVP-TE).

Business functions: VPLS, VPWS, EVPN, SR/SRv6.

QoS: Hierarchical traffic scheduling, speed limit, priority marking.

3. Usage scenarios

Operator IP backbone network/metropolitan area network

Scenario: Metropolitan area network core or aggregation layer, connecting BRAS and PE devices.

Advantage:

High-bandwidth backbone links are realized through 100G/200G interfaces.

Support MPLS VPN and SRv6, and flexibly carry multi-tenant services.

5G Mobile Backhaul

Scene: The backhaul network from 5G base stations (gNB) to the core network (5GC).

Advantages:

The high-density 10GbE/25GbE sub-card connects to the base station, and the 100GbE sub-card goes up to the core.

Supports clock synchronization (SyncE/PTP), meeting the low latency requirements of 5G.

Cloud Data Center Interconnection (DCI

Scene: High-speed interconnection across data centers (200G backbone link).

Advantages:

Multi-tenant network expansion is achieved through EVPN-VXLAN. ,

Support FlexE interface slicing to enhance link utilization.

Enterprise core network

High-performance core routers for enterprises in finance, manufacturing, and other fields.

Advantages:

Through a hybrid configuration of sub-cards (such as 10GbE connected to branch offices + 100GbE connected to cloud services).

Provide hardware-level encryption (such as MACsec) to ensure data security.

4. Core advantages

High density and flexibility: A single slot supports the mixed deployment of multiple service ports, reducing equipment footprint and power consumption.

Carrier-grade reliability: Supports ISSU (uninterrupted service upgrade), redundant power supply, and BFD rapid detection.

Smooth evolution: Compatible with future 400G sub-cards, protecting investment.

5. Applicable equipment

Nokia 7750 SR-1: Compact business router, suitable for edge scenarios.

Nokia 7750 SR-7/12: High-end core router, supporting large-scale network deployment.

In addition to Nokia 3HE09648BA ,  Quanbo Tech supply a wide range of other Nokia 7750-SR router series . If you have any need or interest, please feel free to send inquiry to Sale@quanbotelecom.com
