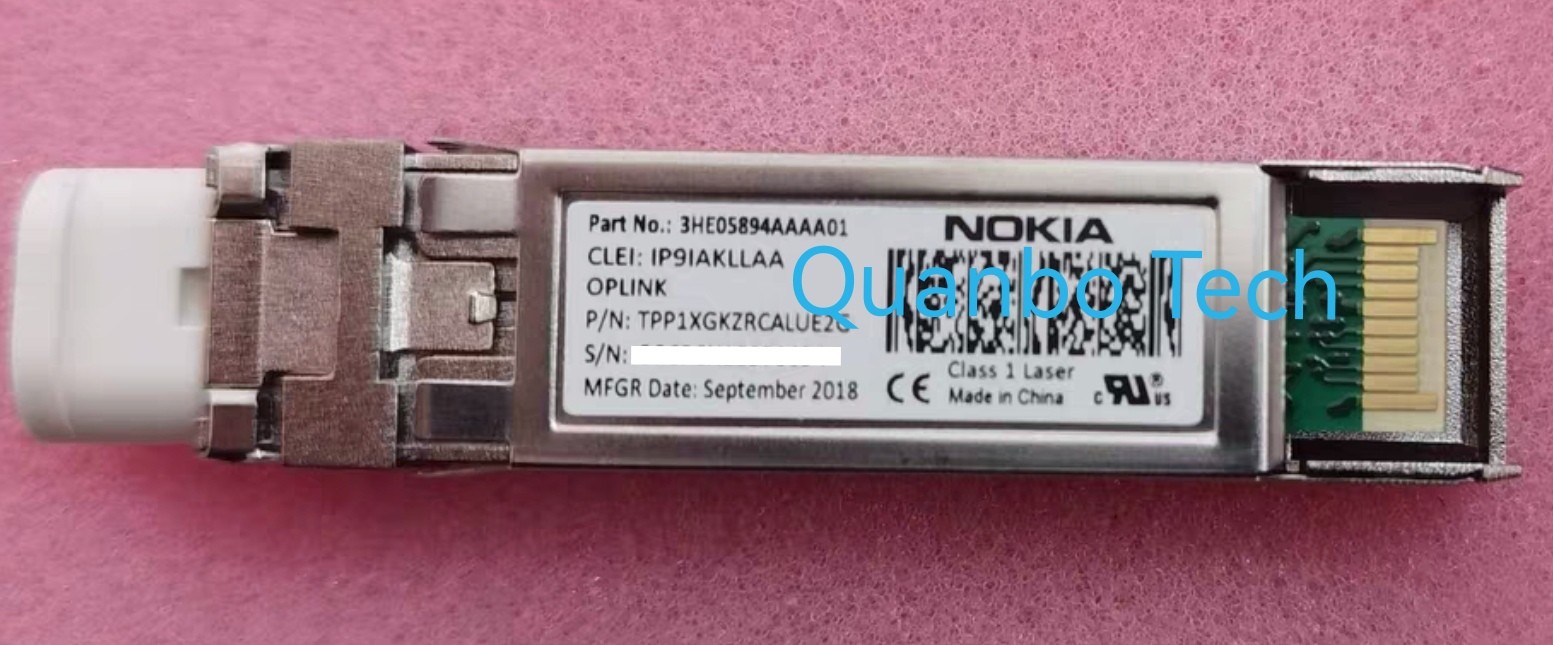

Nokia 3HE05894AA

Brand: Nokia

Part Number: 3HE05894AA

CLEI:  IP9IAKLLAA

Encapsulation mode: SFP+

Speed Description: 10GB

Reach: 80km

Optical fiber type: SMF

Wavelength: 1550nm

DOM: DOM

Transceiver Type：ZR

Connector: LC

Speed Description: 10-Gigabit

DDM:DDM

Description: 10GBase-ZR SFP+ Transceiver (SMF, 1550nm, 80km, LC, DOM)

Product Category: Pluggable optical module

Availability: Used

Lead time-7days

Trading terms: TT

Warranty period:  180days

Country of origin: CHINA

Environment: 0 to 70C

Nokia 3HE05894AA is an SFP+ (Small Form-Factor Pluggable Plus) optical module.

Designed specifically for 10Gbps long-distance optical fiber communication *, it supports a transmission distance of 80 kilometers (80KM). The following are the key points of this product: 1. Main technical specifications:

Rate and Protocol

Support 10Gbps data transmission (conforming to 10GBASE-LR/ER standard).

Compatible with OTN (Optical Transport Network) and SONET/SDH protocols.

Transmission distance: 80 kilometers of single-mode optical fiber (the actual distance may be affected by optical fiber quality, connector loss, etc.).

Wavelength and Fiber type:

Use a wavelength of 1310nm or 1550nm (depending on the model variant).

Single-mode optical fiber (SMF, 9/125µm).

Interface and Power Consumption:

LC duplex interface, supporting hot plugging.

Typical power consumption <1.5W, low-power design.

Temperature range:

Commercial grade (0°C to 70°C) or industrial grade (-40°C to 85°C), for specific details, please refer to the product documentation.

2. Application scenarios

Long-distance backbone network: Metropolitan Area Network (MAN), cross-data center interconnection.

Telecommunication network: Used in conjunction with Nokia routers/switches (such as the 7750 SR series).

Enterprise dedicated line: Long-distance enterprise dedicated line connection with high bandwidth and low latency.

3. Product Features

High reliability: Compliant with Nokia's strict industrial-grade standards, suitable for harsh environments.

Digital Diagnostic Monitoring (DDM) : Supports real-time monitoring of parameters such as optical power, temperature, and voltage.

Compatibility: It can be deployed in Nokia devices that support SFP+ interfaces (specific model compatibility needs to be confirmed).

4. Physical and environmental parameters

Size: Standard SFP+ size (approximately 20.5mm x 13.4mm x 56.5mm).

Certification: Complies with international standards such as RoHS, CE, and FCC.

5. Precautions

Optical fiber attenuation: For long-distance transmission, it is necessary to ensure that the optical fiber link loss is less than 24dB, and high-quality connectors and optical fibers may be required.

Compatibility verification: It is recommended to verify the device compatibility through official Nokia tools (such as the NSP platform) before deployment.

Heat dissipation requirements: Ensure that the ventilation conditions of the equipment meet the heat dissipation requirements of the module.

6. Typical supporting equipment

Nokia 7750 Service Router series

Nokia 7250 Interconnect Router

Other switches/routers that support SFP+ 10Gbps interfaces

In addition to Nokia 3HE05894AA , Quanbo Tech supply a wide range of other Nokia fiber optic transceiver . If you have any need or interest, please feel free to send inquiry to Sale@quanbotelecom.com
