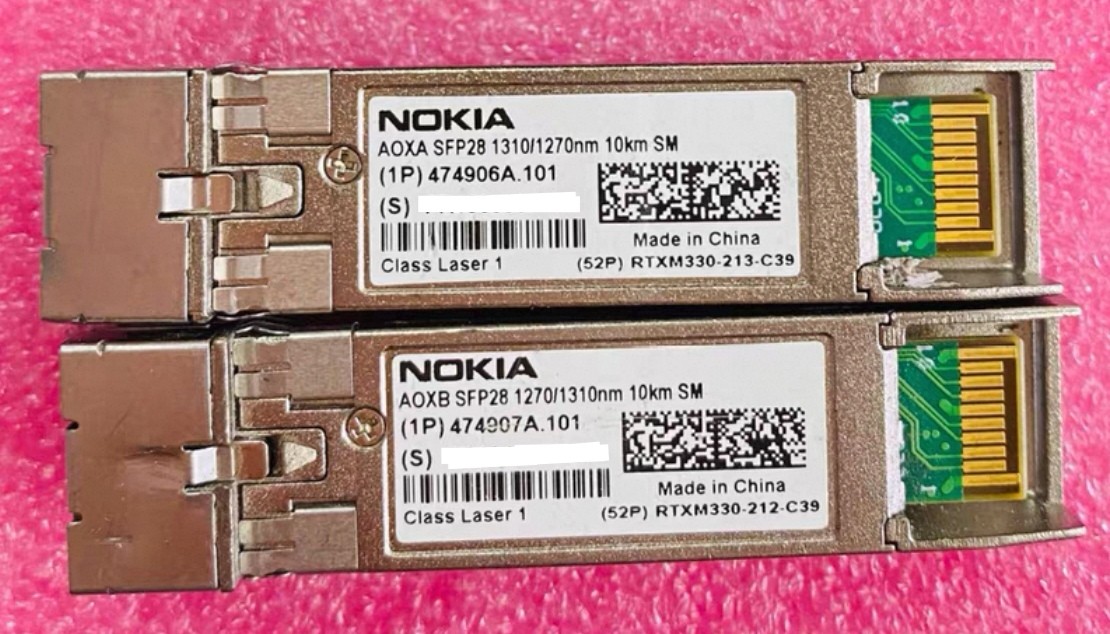

Nokia 474906A 474907A AOXA AOXB

Brand: Nokia

Part Number: 474906A 474907A AOXA AOXB

MPN: MBS-7C31-31-01, RTXM330-212-C39

Form Type: SFP28

Speed: 25Gbps

Connector: Simplex LC

Media: SMF

Wavelength: Tx-1330nm, Rx-1270nm

Reach: 10km

DDM: Supported

Up to 10KM transmission distance

Support Multi Rate 9.8304~25.78125Gbps

1330/1270nm DFB and PIN receiver

25GAUI C2M electrical interface

2-wire interface for integrated Digital Diagnostic monitoring

SFP+ MSA package with single LC connectors

Hot pluggable

Very low EMI and excellent ESD protection

+3.3V power supply

Power consumption less than 1.2 W

Operating case temperature: -40~85°C

25Gbps Ethernet CPRI

Availability: Used

Lead time-7days

Trading terms: TT wire transfer

Warranty period: 180days

Country of origin:  China

The Nokia 474906A 474907A  AOXA  AOXB is a high performance, cost effective modules, which is supporting Multi Rate 9.83~25.78Gbps, and transmission distance up to 10km on SM fiber.

The transceiver consists of two sections: The transmitter section incorporates a 1330nm DFB Laser, a driver and a CDR. The receiver section consists of a PIN photodiode integrated with a trans-impedance preamplifier (TIA),

a Limiting Amplifier and CDR. The module is hot pluggable with a 20-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100 Ohms differential impedance and AC coupled in the module.

In addition to Nokia 474906A 474907A AOXA AOXB , Quanbo Tech supply a wide range of other Nokia fiber optic transceiver .If you have any need or interest, please feel free to send inquiry to Sale@quanbotelecom.com
