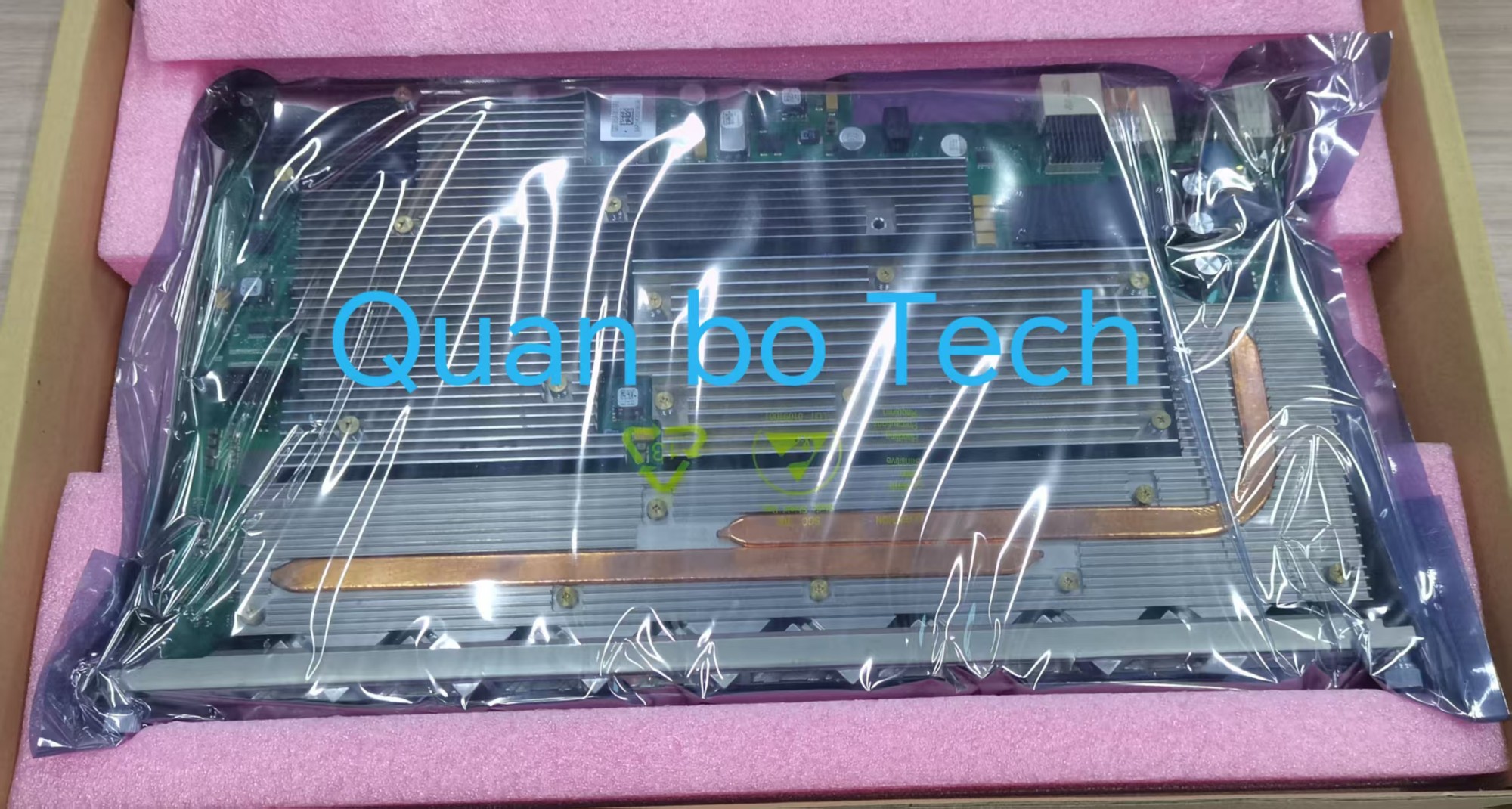

Nokia FWLT-B 3FE72955AA

Nokia FWLT-B 3FE72955AA_8-port symmetric 10G GPON (XGS-PON/TWDM-PON) line termination board_Quanbo Tech

Brand name: Nokia

Part Number: FWLT-B 3FE72955AA

CLEI: VA12AM4NAA

10GPON Port: 8 x 10G XGS-PON/TWDM-PON Port

Optical Module

XGS-PON: dual rate, 10G/10G and 10G/2.5G capable

TWDM-PON: either 10G/10G or 10G/2.5G capable

Encapsulation Type: XFP

Operation Conditions

Inlet/ambient temperature range: -5°C to 45°C (23°F to 113°F) ,when used in fully populated ISAM FX rack.

Humidity: 10% to 95% (non-condensing)

Device Specifications

Weight: 2kg

Dimensions (W x D x H):  Height: 405 mm,  Depth: 225 mm

NOKIA Alcatel-Lucent 8-port symmetric 10G GPON (XGS-PON/TWDM-PON) line termination board

Availability: New

Country of origin: China

Trading terms: TT

Lead time-5days

Apply to NOKIA 7360 ISAM FX

Flexible wavelength movement

8-port universal NG-PON line termination card; each port provides 2 wavelengths (upstream and downstream)

Different wavelength constellations: same wavelength on each port or different wavelength on every port

8-port universal NG-PON interfaces, via pluggable N1, N2, E1, E2 optics, allowing 29dB, 31dB, 33dB resp. 35 dB optical loss budget, based on:

ITU-T: G.9807.1: 10G symmetrical and asymmetrical PON (XGS-PON)

ITU-T G.989.1: NG-PON2 service requirements

ITU-T G.989.2: NG-PON2 Physical Media Dependent (PMD) layer

ITU-T G.989.3: NG-PON2 Transmission Convergence (TC) layer

ITU-T G.988: GPON ONT Management and Control Interface (OMCI)

Universal NG-PON feature, which provides flexibility to choose a variety of optic interfaces:

XGS-PON: dual rate, 10G/10G and 10G/2.5G capable

TWDM-PON: either 10G/10G or 10G/2.5G capable

NOKIA Alcatel-Lucent ISAM FWLT-B is a universal NG-PON (XGS-PON/TWDM-PON) line termination card. Universal NG-PON solution is a Nokia innovation that,

supports XGS-PON dual rate and TWDM-PON on a single platform or line card. The FWLT-B card simplifies and accelerates the fiber network evolution and lowers the,

entry cost of TWDM-PON. Additionally, the card is designed to support different wavelength constellations, which ensure cost-efficient network evolution.Tech Specs

In addition to Nokia FWLT-B 3FE72955AA ,  Quanbo Tech supply a wide range of other Nokia 7360 OLT series . If you have any need or interest, please feel free to send inquiry to Sale@quanbotelecom.com
