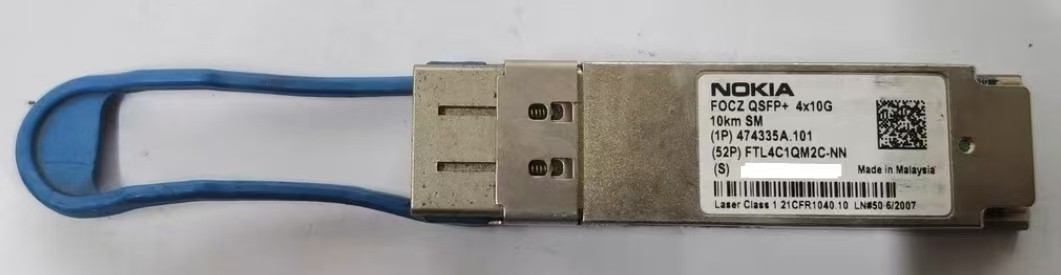

Nokia FOCZ 474335A 101

Brand: Nokia

Part Number: FOCZ 474335A 101

Product Category: optical transceiver

Type: QSFP +

Data speed: 40G

Get to: 10 km

Wavelength: 1310 nm

Media: SMF

Connector: LC

Data Rate (max): 44.6 Gb/s

Protocol: OTN OTU3 Compliant 40G Ethernet Compliant

Low End Case Temperature (°C): 0

High End Case Temperature (°C): 70

Diagnostics: N/A

Transmitter: 4x CWDM DFB Laser

Receiver: PIN

Voltage Supply: 3.3

Hot-pluggable QSFP+ form factor

Supports 39.8 Gb/s to 44.6 Gb/s aggregate bit rates

Power dissipation < 3.5W

RoHS compliant

Commercial temperature range 0°C to 70°C

Single 3.3V power supply

Maximum link length of 10km on Single Mode Fiber (SMF)

Uncooled 4x10Gb/s CWDM transmitter

XLPPI electrical interface

Duplex LC receptacles

Built-in digital diagnostic functions, including Tx/Rx power monitoring

Applications

40GBASE-LR4 40G Ethernet

OTN OTU3 C4S1-2D1

OTU3e1 and OTU3e2

Availability: Used

Lead time-7days

Trading terms: TT

Warranty period: 180days

Country of origin:  China

This Nokia FOCZ 474335A.101 QSFP+ transceiver modules are designed for use in 40 Gigabit Ethernet links and 4x10G OTN client interfaces over single mode fiber.

They are compliant with the QSFP+ MSA, IEEE 802.3ba 40GBASE-LR4 and OTU3 C4S1-2D1 requirements specified in ITU-T Recommendation G.695.

Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is RoHS compliant as described in Application Note AN-2038.

In addition to Nokia FOCZ 474335A 101 , Quanbo Tech supply a wide range of other Nokia fiber optic transceiver . If you have any need or interest, please feel free to send inquiry to Sale@quanbotelecom.com
