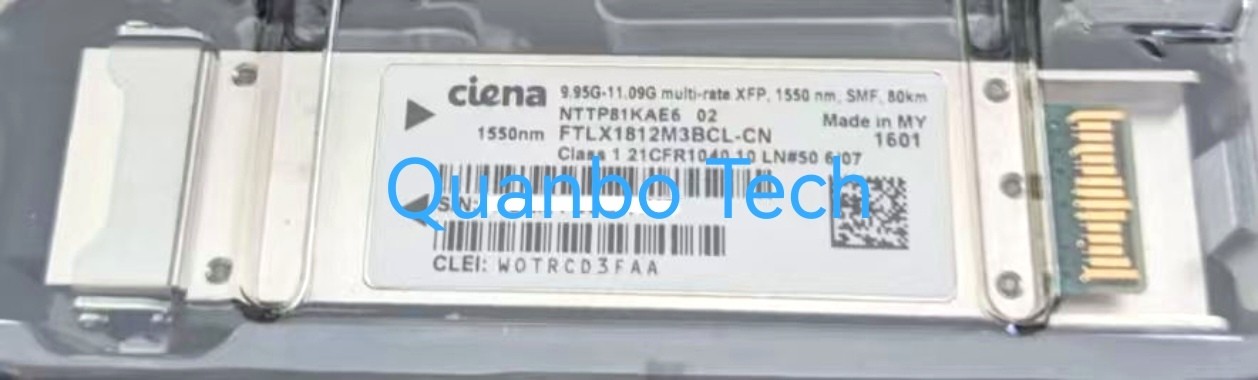

Ciena NTTP81KAE6

Manufacturer: Ciena

Part Number: NTTP81KAE6

CLEI：WOTRCD3FAA

Form Type: XFP

Speed Description: 10G

Reach: 80km

Wavelength: 1550nm

Transceiver Type: ZR

Media: SMF

Connector: LC

DOM: DOM

Availability: Used

Lead time-7days

Trading terms: TT wire transfer

Warranty period:  180days

Country of origin:  MY

Delivery will be made within one week after placing the order.

The Ciena NTTP81KAE6 is a specific type of 10Gbps (10 Gigabit per second) optical transceiver module (commonly referred to as XFP module) with a transmission distance of 80 kilometers.

Here is its core product description and technical features:

1. Physical specification: XFP (10 Gigabit Small Form Factor Pluggable). This is a hot-swappable optical module commonly used for interfaces in network devices such as routers, switches, and transmission platforms.

2. Rate: 10.709 Gbps (10 Gigabit per second). This is its operating rate, conforming to 10G Ethernet or 10G Fibre Channel standards. This specific rate typically indicates that it **enables forward error correction**.

3. Transmission distance: 80 kilometers (80km). This indicates that it is designed for long-distance optical transmission applications.

4. Wavelength: The most typical wavelength configuration is 1550nm (C band). This is the most commonly used wavelength for long-distance transmission, especially in DWDM systems.

5. Interface type: Duplex LC. It uses two LC interfaces, one for transmission (Tx) and one for reception (Rx).

6. Fiber type: Single-mode fiber. It is specifically designed for long-distance transmission and must use single-mode fiber.

7. Laser type: EML (Electro-absorption Modulated Laser) or DML (Directly Modulated Laser). For a 80-kilometer distance, EML is more common as it has better dispersion tolerance and performance,

suitable for longer distances and DWDM applications.

8. Receiver type: APD (Avalanche Photodiode). The APD receiver has a high receiving sensitivity and is the key to achieving 80-kilometer transmission.

9. Diagnostic functions (DOM/DDM): Supports digital diagnostic monitoring. The real-time parameters of the module, such as: transmit optical power, receive optical power, laser bias current,

module operating temperature, supply voltage, alarms and alarm thresholds, can be read through the device's management interface.

10. Temperature range: Commercial temperature range. Usually refers to a working temperature range of 0°C to +70°C. If an industrial-grade temperature range is required, there will be different models.

11. Main applications: Metropolitan and long-distance networks: Point-to-point 10G Ethernet links. Telecommunication operator backbone network: Connecting different sites.

 Enterprise wide area network: Connecting remote data centers or branches.

As a client interface for DWDM systems: Connect 10G services to Ciena's DWDM transmission platform (such as 6500 series) for multiplexed transmission. This is a very common use of Ciena modules.

12. Compatible platforms: This module is mainly designed for Ciena's 6500 series packet optical platform (such as 6500 Packet-Optical Platform).

It can be inserted into the customer-side service slots of the 6500 platform to provide 10G client access capabilities.

Compatibility is crucial:Although physically it is an XFP interface, whether it can be used on non-Ciena devices depends on,

the compatibility list of the device manufacturer. Direct use on third-party switches/routers may not be supported. Key features summary: XFP module,

10.709 Gbps rate (usually with FEC), 80 km transmission distance, 1550nm wavelength (typical), single-mode fiber, duplex LC interface, APD receiver,

digital diagnostic monitoring (DOM/DDM), mainly used as a client module on the Ciena 6500 platform.
